The SY5113 is an ultra-low quiescent current, high efficient, excellent transient response synchronous Buck converter.
In light load application, the device works in power save mode with a quiescent current of only 1μA and has a high light-load efficiency when load current less than 1mA. The VOS pin senses the output voltage and provides the information to an internal comparator. The constant-on-time(COT) Buck controller received and provides immediate response to dynamic load changes. It has excellent AC load regulation, transient response, and meanwhile has ultra-low output ripple voltage.
During the startup stage, the resistor to digital(R2D) of VSEL pin senses the external resistor to set the target output voltage. There are sixteen levels voltage can be selected. When the input voltage approaches the output voltage, the device goes into no ripple 100% mode to prevent the output ripple voltage from increasing. In this mode, the device stops switching and keeps the high-side P-MOSFET on.

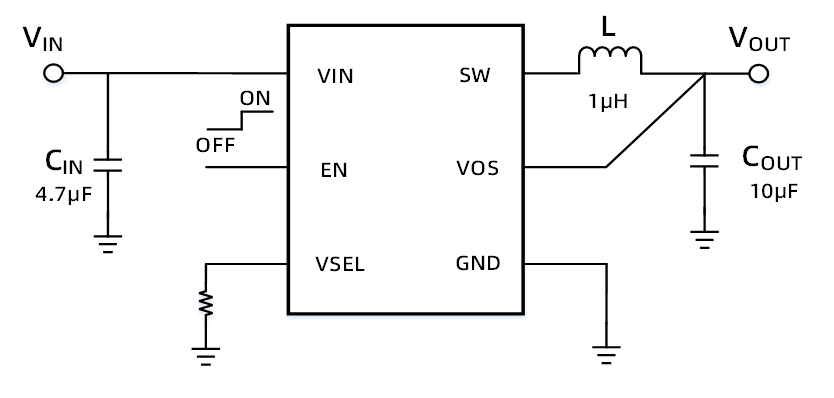

Input voltage range: 2.5V ~ 5.5V
Output voltage range: 0.4V ~ 3.3V
Quiescent current: 1.2μA (TYP)
Max output current: 600mA
2% Output voltage accuracy
Switching frequency: 1.5MHz
Single external resistor selects output voltage: SY5113-WARS: 0.4V to 1V; SY5113-WBRS: 1.2V to 3.3V; SY5113-DARS: 0.4V to 1V; SY5113-DBRS: 1.2V to 3.3V
Excellent transient response
Ultra low output ripple voltage
Support power save mode and 100% duty cycle mode
Output voltage discharge when disabled
Available in WLCSP-1.01x0.66-6B and DFN-2x2-6L package
Smart phone, Mobile phone
Wearable device
Bluetooth headset
Medical device
